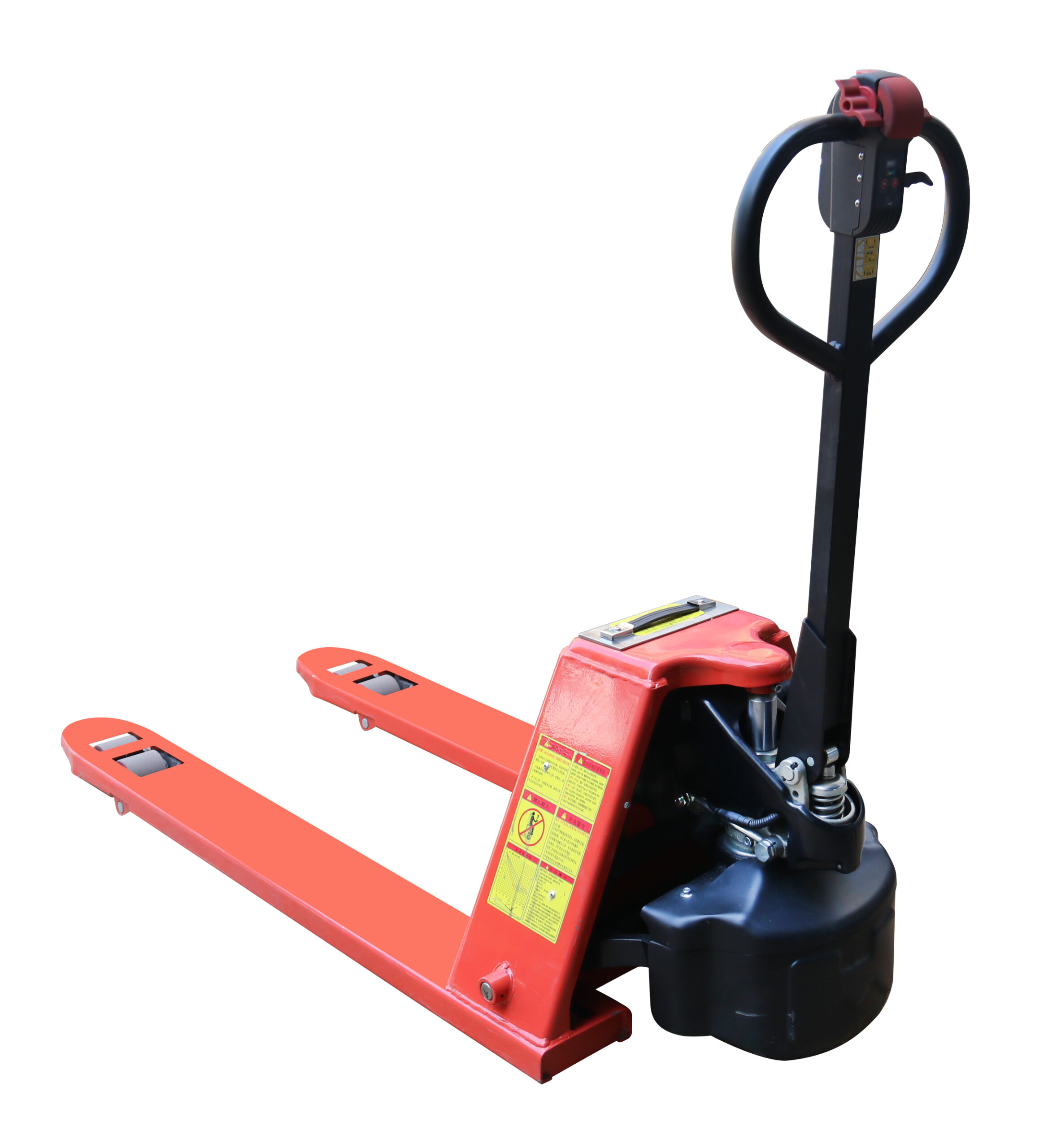

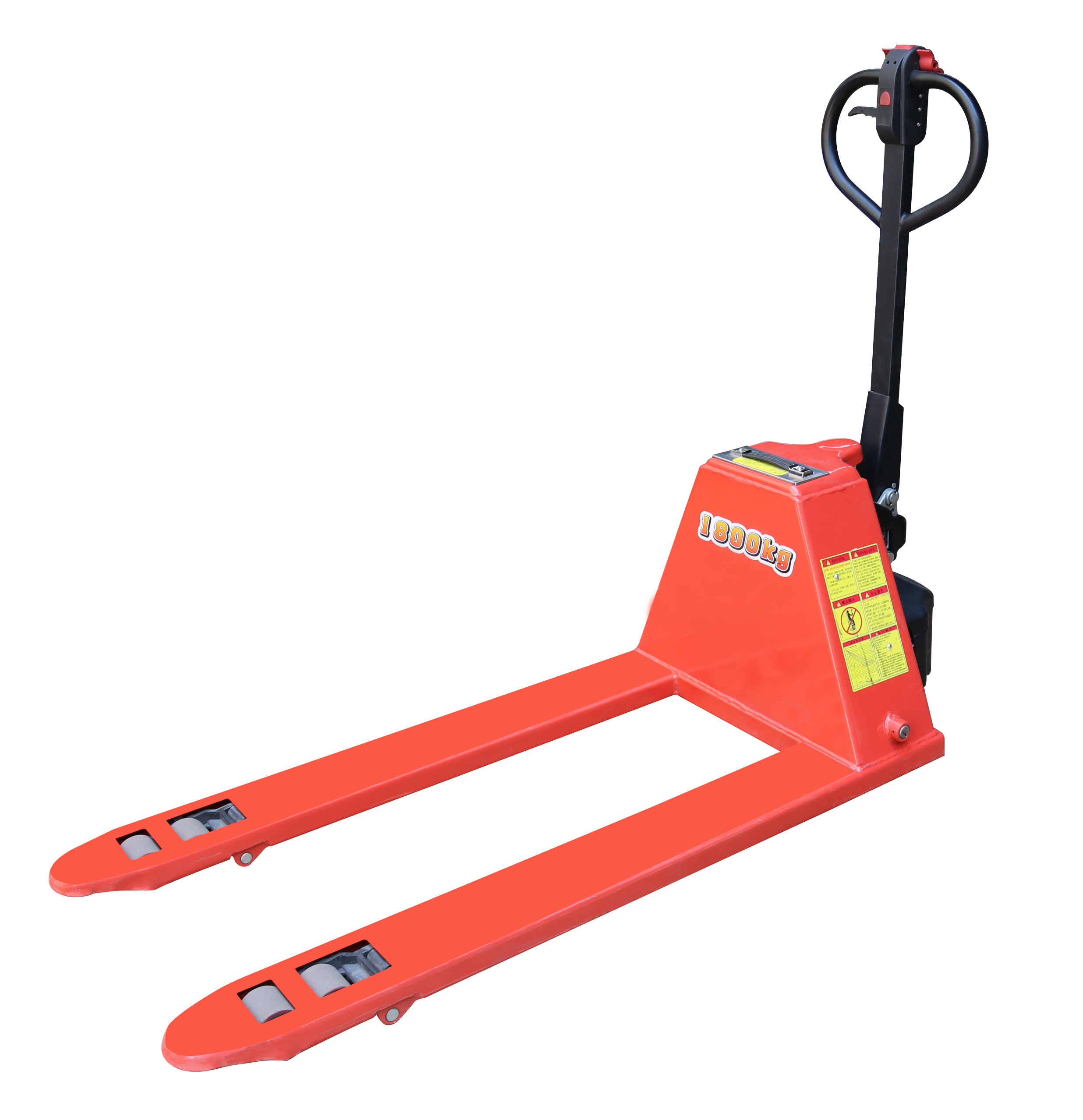

អេឡិចត្រិកប៉ាលេតពេញជាមួយថ្មលីចូមចល័ត

លក្ខណៈពិសេសនៃការបង្វិលតារាងការងារ៖

  • Handle integrated battery display and operation control.more convenient.
  • Drive unit with electromagnetic brake.
  • Comply with CE European safety standards.
  • Highly increase productivity and reduce operator fatigue, with smart size as a manual pallet jack. perfect for use in narrow & reduced spaces, small warehouses, manufactures, retail & transportation industries.



HD-HM series

  • Small but strong frame design,good for operating in narrow aisle.
  • The battery is light and easy to replace.lt can be replaced quickly in 20 seconds, can never be cut off.
  • 48v15ah lithium iron phosphate battery.

HQ-HM series

  • Small but strong frame design,good for operating in narrow aisle.
  • Large capacity battery,48v30ah lead acid battery.

HK-HM series

  • Strong steel structure design makes it more durable.
  • Large capacity battery,48v30ah lead acid battery.
អាយ - លើក111140111114021111403111140411114051111406
គំរូHD18-HMHD20-HMHQ20-HMHQ25-HMHQ30-HMHK30-HM
ឯកតាដ្រាយអគ្គិសនី
ផ្ទុកសមត្ថភាពkg(ib.)1800(3960)2000(4400)2000(4400)2500(5500)3000(6600)3000(6600)
មជ្ឈមណ្ឌលផ្ទុកមម (ក្នុង។ )600(23.6)475(18.7)510(20)475(18.7)    510(20)475(18.7)510(20)
Overal Lengthមម (ក្នុង។ )1610(63.4)1550(61)1620(63.8)1620(63.8)1690(66.5)1590(62.6)1660(65.4)
Overal Widthមម (ក្នុង។ )680(26.8)550(21.7)680(26.8)550(21.7)    680(26.8)550(21.7)680(26.8)
Overal Heightមម (ក្នុង។ )1265(49.8)1280(50.4)1280(50.4)1280(50.4)
ប្រវែងសមមម (ក្នុង។ )1220(48)1150(45.3)1220(48)1150(45.3)  1220(48)1150(45.3)1220(48)
Individual Fork Widthមម (ក្នុង។ )160(6.3)160(6.3)160(6.3)160(6.3)
Overall Fork Widthមម (ក្នុង។ )680(26.8)550(21.7) 680(26.8)550(21.7)           680(26.8)550(21.7) 680(26.8)
Max. Fork Heightមម (ក្នុង។ )190(7.5)195(7.7)195(7.7)195(7.7)
Min. Fork Heightមម (ក្នុង។ )75⑶80(3.1)80(3.1)80(3.1)
Front Load Rollerមម (ក្នុង។ )Φ75x70(3x2.8)Φ80x70(3.1x2.8)Φ80x70(3.1x2.8)Φ80x70(3.1x2.8)
Driving Wheelមម (ក្នុង។ )Φ190x70(7.5x2.8)Φ210x70(8.3x2.8)Φ210x70(8.3x2.8)Φ210x70(8.3x2.8)
Max. Travel Speedគីឡូម៉ែត្រ / ម៉ោង4.54.34.54.5
Service Brakeហ្វ្រាំងអេឡិចត្រូម៉ាញ៉េទិច
Motive Powerkw0.750.7511.21.2
សមត្ថភាពថ្មវី / អេ48/1548/3048/30
ឆ្នាំងសាកINPUTiAC 100-240V~50/60Hz1.5A 150VA OUPUTzDC 54.6V 2A
ទម្ងន់​សុទ្ធkg (lb ។ )140(308)155(341)185(407)195(429)200(440)215(473)
40"GP550:60Units   680:48Units
