AFPT1000E Adjustable Fork Pallet Truck

The Features of Adjustable Fork Pallet Truck

  • Fork width can be adjusted from 345mm to 675mm, it makes it suitable for all kinds of trays.
  • The adjust handle is on the side, which is more convenient
  • The adjustment is smooth and effortless.
  • Handle foldable
SpecificationGuide to Safety Operation
អាយ - លើក
ផ្ទុកសមត្ថភាពkg (lb ។ )1000(2200)
មជ្ឈមណ្ឌលផ្ទុកមម (ក្នុង។ )600(23.6)

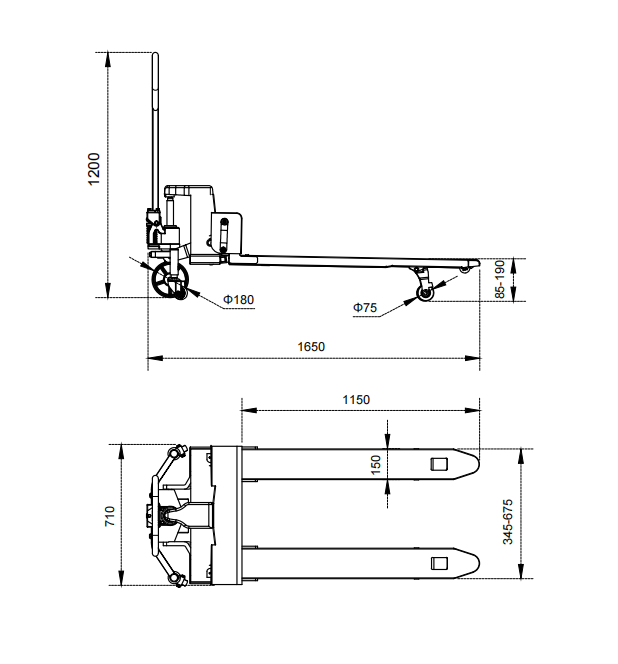

LxWxHមម (ក្នុង។ )1650x710x1200(65x28x47.2)
ប្រវែងសមមម (ក្នុង។ )1220(48)
Individual Fork Widthមម (ក្នុង។ )150(5.9)
ទទឹងសមដែលអាចលៃតម្រូវបានមម (ក្នុង។ )345~675(13.6~26.6)
Max. Fork Heightមម (ក្នុង។ )180(7.1)
Min. Fork Heightមម (ក្នុង។ )70(2.8)
Front Load Rollerមម (ក្នុង។ )Φ75x95(Φ2.95x3.74)
Driving Wheelមម (ក្នុង។ )Φ180x50(Φ7.08x1.97)
ទម្ងន់​សុទ្ធkg (lb ។ )122(268.4)


  • Do not operate the pallet truck unless you are familiar with it and have been trained or authorized to do so.
  • Do not operate the truck unless you have checked its condition. Give special attention to the wheels, the handle assembly, the forks, the distance between the forks, lift, and the lower control.
  • Do not use the truck on sloping ground.
  • Never place any part of your body in the lifting mechanism or under the forks or load. Do not carry passengers.
  • We advise that operator should wear gloves and safety shoes
  • Do not handle unstable or loosely stacked loads.
  • Do not overload the truck.
  • When possible, operate the truck with maximum distance between forks.
  • Always place loads centrally across the forks and not at the end of the forks.
  • The capacity of the truck assumes an evenly distributed load with the center of the load being at the halfway point of the length of the forks.
  • Lower the forks to lowest height when the truck is not being used.
  • In other specific conditions, the operator should take extra care in operating the truck.
